How Does a Moka Pot Work?

Jump to section

Tap a heading to move to that section.

1. 01Moka pot anatomy↓
2. 02The brew, step by step↓
3. 031. Heat enters the lower chamber↓
4. 042. Conditions inside the sealed chamber change↓
5. 053. A pressure difference develops↓
6. 064. Water rises through the funnel↓
7. 075. Water passes through the coffee bed↓
8. 086. Brewed coffee crosses the upper filter↓
9. 097. Coffee rises through the chimney↓
10. 108. The end-of-brew flow changes↓
11. 11What actually creates the pressure?↓
12. 12Why does a moka pot start gurgling or sputtering?↓
13. 13How is this different from an espresso machine?↓

Quick answer

A moka pot heats water in a sealed lower chamber. As the water, trapped air, and water vapor warm, pressure inside that chamber rises above the pressure in the upper chamber. The difference pushes liquid water into the funnel tube, through the bed of ground coffee, through a second filter, and up the central chimney. The brewed coffee then spills into the upper collecting chamber.

The pressure is not created by steam alone. Instrumented research found that heated, expanding air already trapped above the water makes a major contribution, while evaporation adds water vapor to the gas mixture. Near the end, the water level reaches the funnel inlet and gas begins to enter the flow path; that unstable mixture of vapor and liquid produces the familiar gurgling or sputtering. Navarini et al.

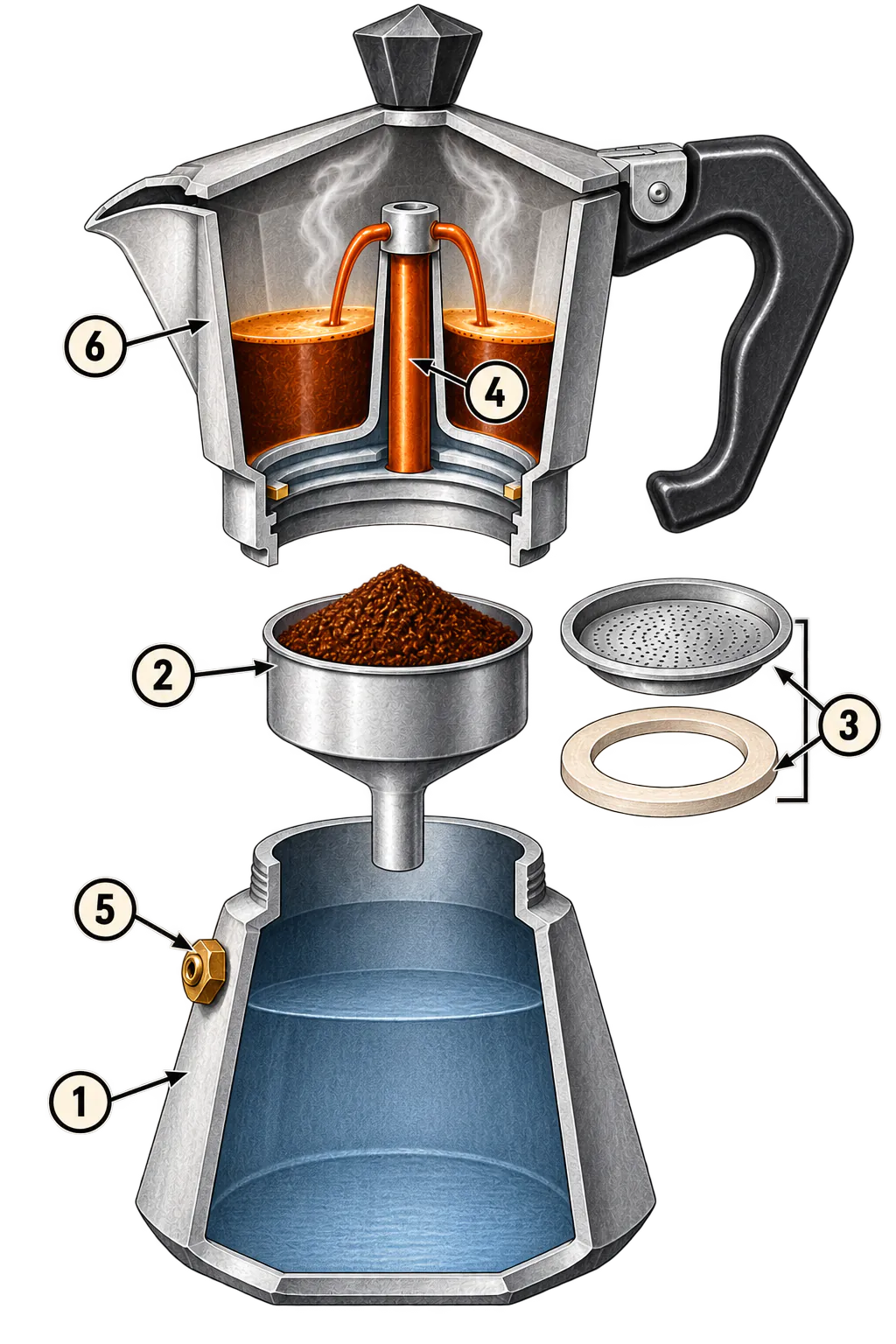

Moka pot anatomy

The familiar outline also has a documented design history; the anatomy below explains what its parts do during brewing.

A conventional moka pot has two main vessels joined around a funnel-shaped filter. The joint is functional, not merely structural: the gasket seals the pressure boundary, and the upper filter plate closes the top of the coffee basket. The resulting path leads from near the bottom of the boiler, through the coffee, and into the chimney. This arrangement is documented in both the Bialetti Moka Express manual and technical patent descriptions of conventional moka architecture.

1. 1Lower chamberHolds the starting water and the gas space above it.
2. 2Funnel filterHolds the untamped coffee bed and carries water upward.
3. 3Filter plate and gasketRetain grounds and seal the joint beneath the collector.
4. 4Central columnCarries brewed coffee into the upper chamber.
5. 5Safety valveProvides a protective pressure-relief path.
6. 6Upper collectorReceives the brewed coffee from the central column.

The brew, step by step

1. Heat enters the lower chamber

The stove heats the moka pot’s base. Energy passes through the metal into the water, the metal body, and the gas space above the water. The water does not warm uniformly or instantaneously, and neither does the trapped gas.

2. Conditions inside the sealed chamber change

With the pot assembled, the gasket and filter assembly restrict the lower chamber’s connection to the atmosphere to the narrow route through the funnel, coffee bed, upper filter, and chimney. As temperature rises, the trapped air warms and water evaporates into that air. Both affect the pressure of the gas mixture above the water.

3. A pressure difference develops

The upper chamber remains near atmospheric pressure. Pressure in the lower chamber rises until it is sufficient to overcome the hydrostatic lift to the basket and the resistance of the funnel, coffee bed, filter, and chimney. Flow begins when that overall pressure requirement is met—not at one universal temperature shared by every pot and recipe.

4. Water rises through the funnel

Pressure on the water’s upper surface drives liquid into the funnel inlet near the bottom of the chamber. The funnel is a standpipe: once water enters it, the only forward route is upward toward the perforated basket.

5. Water passes through the coffee bed

Water enters the underside of the basket, wets the grounds, and flows through the connected spaces between particles. The bed resists that flow. Its resistance is not necessarily constant: Navarini and colleagues reported that the bed’s permeability decreased during their regular extraction phase as the grounds wetted, swelled, and rearranged.

6. Brewed coffee crosses the upper filter

After passing through the bed, the liquid reaches the perforated filter plate. The plate allows the beverage through while physically retaining the grounds. The gasket around it keeps pressure and liquid from escaping sideways across the threaded joint.

7. Coffee rises through the chimney

The brewed liquid enters the base of the central column and rises to its outlet. From there it spills into the upper chamber. The column is therefore the final part of one continuous pressure-driven route; it is not a separate pump.

8. The end-of-brew flow changes

As water leaves the lower chamber, its level falls toward the funnel inlet. Once the inlet is no longer continuously submerged, the pressurized gas above the water can enter the funnel. The flow changes from predominantly liquid water to an unstable mixture that can include liquid, water vapor, and hot gas. That transition creates the noisy final phase.

What actually creates the pressure?

The usual explanation—“steam pressure pushes water up”—is useful only as a first approximation. It identifies pressure as the driver, but it makes the gas above the water sound like pure saturated steam and suggests that the water must boil before brewing can begin.

The more precise explanation has two linked parts:

1. The trapped air warms. The air space present when the pot is assembled is not incidental. Heating changes the state of that trapped gas, and its dry-air contribution to total pressure is substantial.
2. Water evaporates into the gas space. As temperature rises, more water molecules enter the gas phase, adding water-vapor partial pressure. This is evaporation; it does not require the entire body of water to be boiling.

The total pressure above the water is the combined pressure of the air–vapor mixture. At the same time, the space occupied by that mixture grows as water leaves the boiler. Temperature, evaporation, changing gas volume, heat input, and changing coffee-bed resistance interact throughout the brew. That is why a moka pot is better understood as a changing thermo-fluid system than as a kettle with a tube.

The combined air–vapor explanation follows the published measurements and thermodynamic analysis. Our methodology explains how experimental findings are distinguished from simplified models.

Why does a moka pot start gurgling or sputtering?

Gurgling marks a change in what is entering the funnel. During regular extraction, the funnel inlet is submerged and predominantly liquid water moves upward. When the water level falls to the inlet, the hot pressurized gas space gains a direct route into the funnel. Gas then drives and mixes with the remaining liquid, and intense evaporation can occur in the small amount of water left in the heated boiler.

Navarini and colleagues called this late behavior the “strombolian phase” because of its intermittent, volcano-like discharge. The mechanism explains why the final output can arrive as pulses and spray rather than the steadier liquid stream seen earlier. It does not mean every case of premature or violent sputtering has the same cause; assembly, sealing, obstruction, fill, and heat can also matter. The symptom-based moka pot sputtering guide separates the normal endpoint from early spray, joint leakage, and safety-valve venting.

How is this different from an espresso machine?

Both methods force hot water through a porous bed of ground coffee, but they create and control that flow differently.

A conventional moka pot develops pressure by heating a sealed water-and-gas chamber. Its pressure and temperature change through the brew, and its coffee bed is held in a funnel basket without the tightly compacted puck used for espresso. A pump-driven espresso machine instead supplies hot water to a compacted puck at a controlled, much higher brewing pressure. For context, the La Marzocco GS3 manual specifies approximately 9 bar while brewing.

That difference in equipment, pressure regime, bed preparation, and beverage format is why moka coffee is not literally espresso, even when a moka pot is marketed as a “stovetop espresso maker.” The dedicated moka pot vs espresso comparison examines that distinction without treating either method as the winner. Pressure varies over time and with the pot, water fill, heat input, coffee bed, and measurement convention. The measured values and the important absolute-versus-gauge distinction are examined in the dedicated guide to moka pot pressure.
