Quick answer
The moka pot safety valve is the small fitting in the wall of the lower chamber. It provides a protective relief path for that pressurized chamber; it is not the normal coffee outlet and should not visibly release during every brew. Follow the exact model manual for water level and any permitted inspection. Never block, probe, dismantle, tighten, or recalibrate the valve. If it releases steam or liquid repeatedly, appears damaged, or cannot be checked by the documented method, remove the pot from heat, let it cool completely, and stop using it until the manufacturer or an authorised service source assesses it.
Which part is the safety valve?

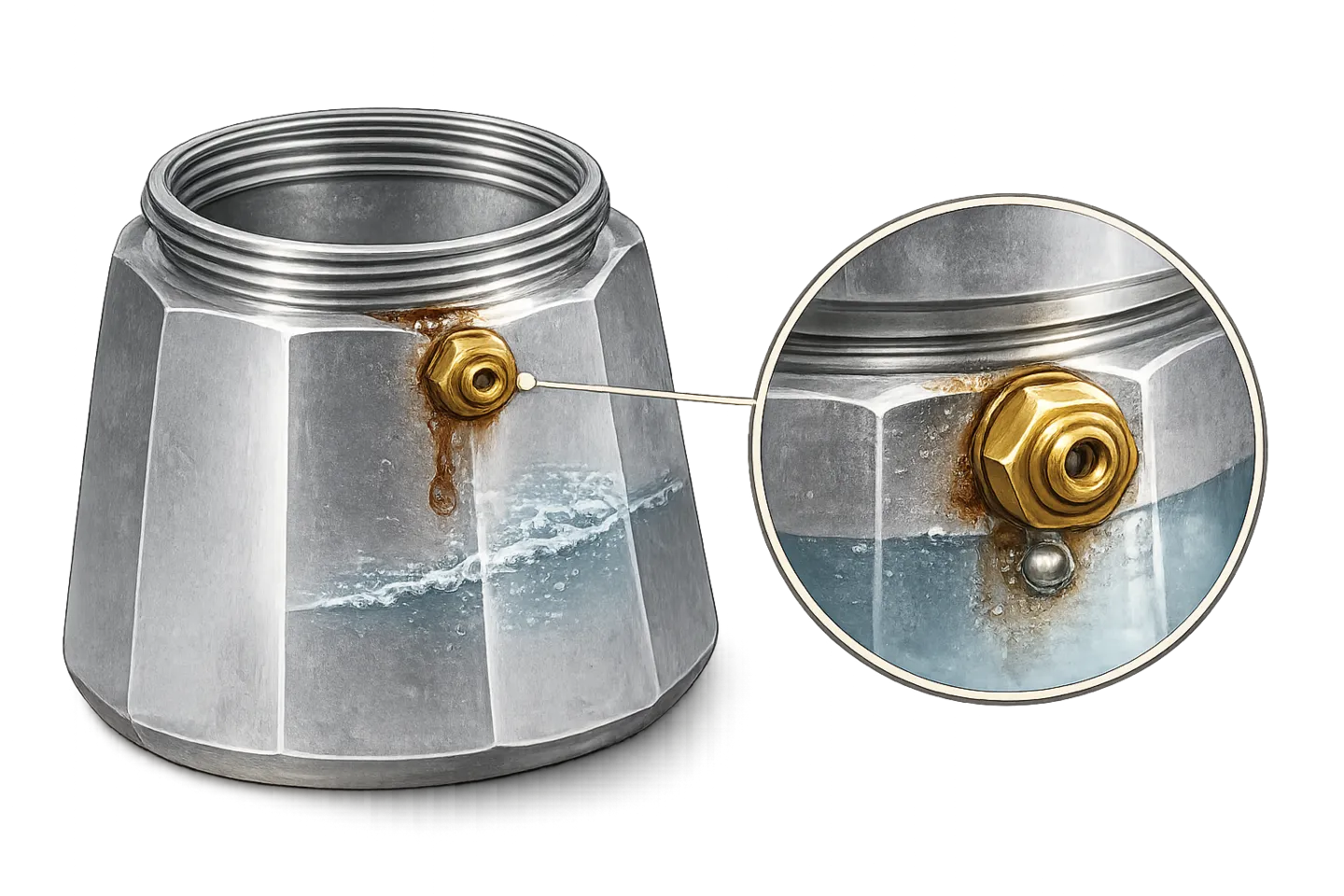

Look at the side wall of the lower chamber, also called the boiler. The safety valve is the small metal fitting that passes through that wall. Its external shape can vary by manufacturer, model, and generation, so a Bialetti valve is not a universal visual template.
The valve sits in the lower-chamber wall, separately from the central chimney where brewed coffee emerges. The anatomy guide shows its position relative to the basket, gasket, and filter plate.
What does the moka pot safety valve do?
The examined Bialetti Moka Express manual identifies the valve as a safety component designed for safe use of the coffeemaker. It provides a protective relief path for the pressurized lower chamber. That does not establish its opening pressure, internal geometry, spring rate, or calibration, and the manual does not authorize a user to adjust any of those properties.
During normal brewing, heated air and water vapor contribute to pressure in the sealed lower chamber. That pressure difference moves liquid into the funnel stem, through the coffee bed and filter plate, and up the chimney. Published moka research documents that changing pressure-driven route; it does not identify the safety valve as the normal flow controller. Navarini et al.
For measured moka pressure, brew phases, and absolute-versus-gauge terminology, use the separate moka pot pressure guide. The valve’s presence does not turn a moka into an espresso-pressure machine.
How high should the water be?
For the Bialetti Moka Express covered by the examined manual, add cold water to the lower edge of the safety valve. Current Bialetti New Zealand Moka Express guidance describes the practical reference as just below the level of the safety valve. Both keep the valve from being covered, but neither supplies a universal millimeter distance.
Do not convert this into a rule for every moka pot. A different model may use a fill line, supplied measure, or differently positioned valve. Follow its exact current manual rather than copying the geometry or volume of a Moka Express. The complete loading sequence belongs in how to use a moka pot.
What can you safely inspect?
User inspection is narrower than functional certification. When the pot is cool, ordinary observation can establish whether there is visible damage, external contamination, residue or discoloration, unusual moisture, or an external design matching the feature described by the exact manual. Appearance cannot establish internal condition or performance.
| Observation | Documented or proportionate check | What it does not prove |
|---|---|---|
| Valve looks clean and dry | Confirm correct model-specific water level and normal preparation. | That opening pressure or internal calibration is correct. |
| Visible residue or discoloration | Clean only by the exact model’s ordinary care instructions; identify broader mineral deposits separately. | That the material is scale, rust, coffee, corrosion, or an internal obstruction. |
| Moisture, steam, or liquid around the valve | Remove heat, keep clear, cool completely, then follow the exact manufacturer checks. | Overpressure, excess water, valve failure, or one specific internal cause. |
| Visible deformation, looseness, damage, or missing part | Do not continue using the brewer; contact the manufacturer, seller, or authorised service source. | That a home adjustment or generic replacement will restore safe operation. |
A clean-looking valve is not a passed pressure test. Likewise, age or discoloration alone does not establish failure. A second-hand pot with unknown valve condition cannot be certified safe from a photograph.
The Moka Express external-piston check
The examined Moka Express manual documents one specific user action: during normal washing, periodically move the small piston protruding from the valve along its axis. The manual connects that inspection with the possibility of limescale obstructing the valve opening.
That instruction applies only when the exact valve and manual show the feature. It is not permission to insert a needle, pin, wire, toothpick, or tool into the opening; dismantle the valve; or copy the action to a different valve design. Bialetti’s regional troubleshooting describes its own movement instruction, reinforcing why the manual supplied for the exact model and generation takes priority.
Broader washing methods belong in the moka pot cleaning guide. If mineral deposits are present elsewhere in the brewer, use the exact-model procedure in the descaling guide; do not pour chemicals into, soak, or internally descale the valve unless its manufacturer explicitly instructs that action.
What if the valve releases steam or liquid?
Visible release from the safety-valve area is abnormal behavior to investigate, not the normal route for brewed coffee. Remove the moka from heat, keep hands and face away from the outlet, and wait until it has completely cooled before opening, washing, or inspecting it.
For the examined Moka Express, Bialetti instructs users to check whether the coffee was ground for moka, whether it was pressed into the funnel, and whether too much water was added. These are model-specific manufacturer checks, not proof that any one factor caused the release. Bialetti New Zealand troubleshooting also directs users to inspect the ordinary flow path and funnel condition.
If release persists after the documented checks, the Moka Express manual says not to use the product and to contact the seller. Regional Bialetti troubleshooting similarly says to cease use and seek authorised checking or service. The complete location-first diagnosis remains in why a moka pot leaks.
Do not diagnose overpressure from moisture alone. A leak is not a pressure gauge, and absence of visible venting does not certify the valve.
What should you never do to the valve?
Do not:
- block, plug, tape, glue, or seal over it;
- drill, enlarge, file, or reshape it;
- tighten, loosen, remove, dismantle, or recalibrate it;
- insert needles, pins, wire, toothpicks, drill bits, or chemicals;
- use compressed air or deliberately force the external element;
- overfill, obstruct the normal path, tamp coffee, or apply extra heat as a test;
- heat a damaged pot or try to trigger the valve deliberately;
- replace it with improvised or randomly matched hardware.
No reviewed applicable manufacturer source authorizes those actions. The Moka Express manual does allow a needle for clearing filter-plate holes; that is not a valve-cleaning instruction.
When should you stop using the moka pot?
Stop using the brewer when the valve continues to release after the exact model’s documented preparation and user-level checks, when the valve or lower chamber is visibly damaged or deformed, when a required safety component is missing, or when its safe condition cannot reasonably be verified through the manufacturer-documented inspection.
Do not unscrew or handle the valve while the moka is hot or may remain pressurized. Let the complete brewer cool before ordinary disassembly. A persistent valve problem ends the home diagnostic sequence.
The reviewed sources do not provide a universal valve replacement interval or generic user replacement procedure. They also do not establish that every valve is integral or independently replaceable. Manufacturer, model, size, generation, and current parts documentation determine whether the brewer or a component is serviced or replaced. Do not substitute a superficially similar part.
