Quick answer

Published measurements do not support one fixed pressure for every moka pot. In a well-documented experiment on a three-cup pot, lower-chamber pressure rose from about 1 bar absolute toward 2 bar absolute during regular extraction—roughly 0 to 1 bar gauge above atmospheric pressure. That is approximately 100–200 kPa absolute, or 15–29 psi absolute. These are rounded readings from a time-varying graph for one setup, not a universal moka specification. Navarini et al.

This distinction explains why “1 bar” and “2 bar” can both appear in moka discussions: one may mean pressure above the atmosphere, while the other includes atmospheric pressure. The reference must be stated before the numbers can be compared.

What does “bar” actually mean?

Pressure numbers need a reference point. Absolute pressure starts at a perfect vacuum, so ordinary atmospheric pressure is already about 1 bar absolute. Gauge pressure starts at the surrounding atmosphere, so the same ordinary condition reads about 0 bar gauge.

That means a lower chamber at approximately 2 bar absolute is at approximately 1 bar gauge: about 1 bar above the air outside the pot. It does not mean two different physical states. Altitude and weather shift local atmospheric pressure slightly, so this subtraction is deliberately rounded.

One bar is exactly 100 kPa; it is approximately 14.5 psi. The BIPM SI Brochure provides the authoritative relationship between bar and pascal.

What the published experiment actually measured

Navarini and colleagues provide a directly measured pressure trace for a defined moka setup. The researchers instrumented a three-cup Bialetti Moka Express with a pressure probe in the lower tank, multiple temperature probes, and a water-level measurement system. Their standard setup used 150 g of water and 15 g of coarsely ground Arabica coffee, with repeated runs at 400 W and 600 W.

Their published pressure graphs begin near 1 bar before pressure builds. Together with the paper’s pressure–temperature treatment, that baseline indicates that the plotted values are absolute pressure, although the axis itself is labeled only “bar.” This interpretation matters: reading the graph as gauge pressure would add approximately one atmosphere to the physical pressure.

How pressure changes during the brew

Heating

The assembled lower chamber initially sits near atmospheric pressure. Heating raises the temperatures of the water, metal, trapped air, and water vapor, but not all at the same rate. The measured pressure trace remains near its starting level for much of this period before rising more strongly.

Onset of liquid movement

Flow begins when the lower-chamber pressure is high enough relative to the vented upper chamber to lift water and overcome resistance in the funnel, coffee bed, filter, and chimney. There is no single pressure threshold independent of pot geometry and bed resistance.

Regular extraction

While the funnel inlet remains submerged, the lower air–vapor space behaves as a closed system and drives predominantly liquid water through the coffee. In Navarini’s tests, coffee-bed permeability decreased as the bed wetted and changed, so the resistance—and the pressure drop associated with flow—was not constant.

Late brew and sputtering

When the falling water level reaches the funnel inlet, pressurized gas gains a path into the funnel. The system changes from regular liquid extraction to the intermittent phase the paper calls “strombolian.” Continued heating of the small amount of water left can produce fast pressure, evaporation, and flow changes. A late peak should not be presented as the pot’s steady operating pressure.

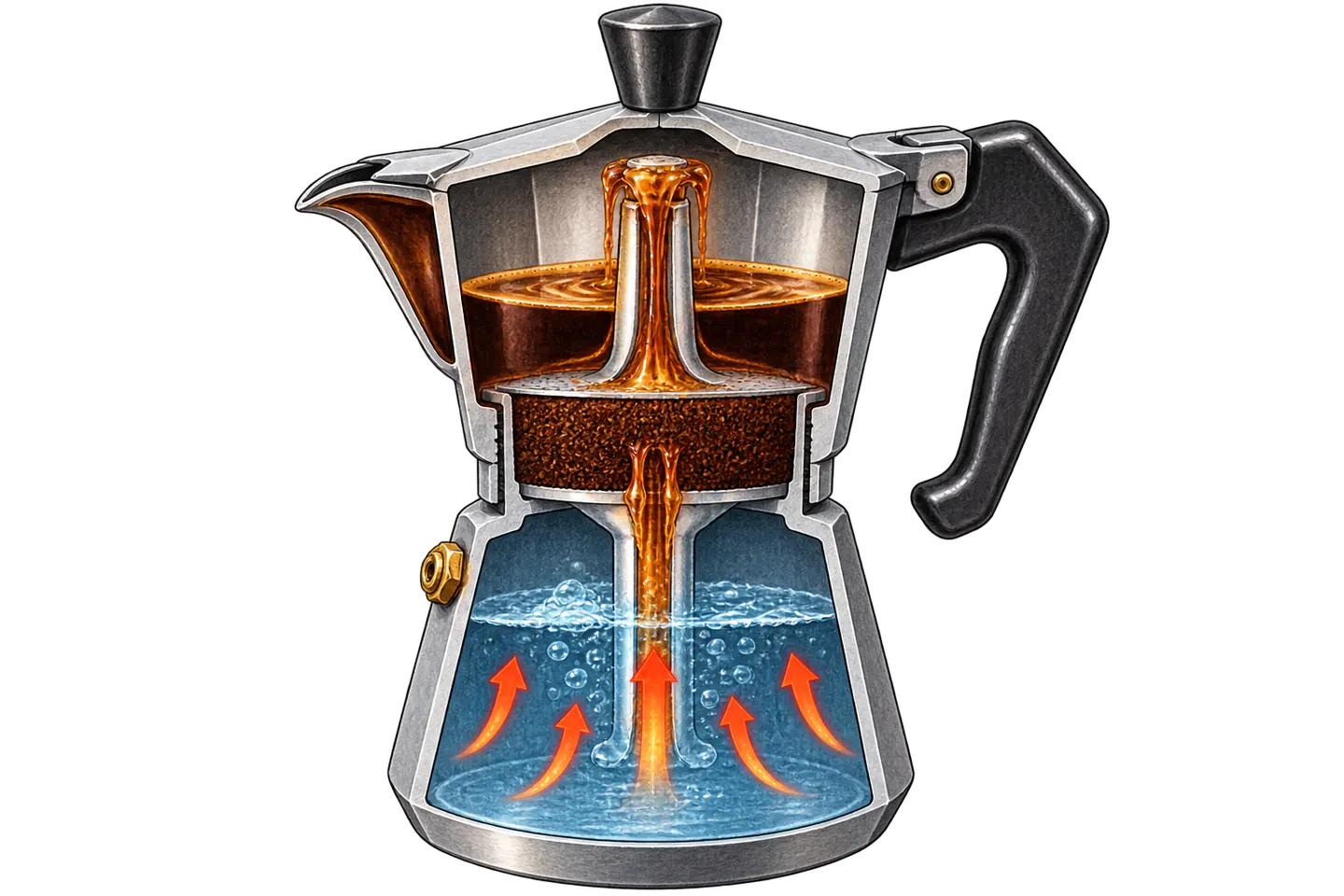

What creates moka pot pressure?

The lower chamber is sealed except for the intended route through the coffee. As it is heated, the dry air trapped above the water changes pressure and evaporation adds water vapor to the same headspace. Navarini and colleagues found the dry-air contribution to be substantial, not negligible.

The combined air–vapor pressure must exceed the pressure in the vented upper chamber by enough to overcome elevation and flow resistance. That pressure difference moves the water. The complete component-by-component account is in how a moka pot works.

Moka pressure vs espresso pressure

A pump-driven espresso machine operates at a much higher controlled brew pressure. The La Marzocco GS3 manual specifies approximately 9 bar while brewing; its pump is factory-set to that pressure.

This comparison is useful for scale, but it is not perfectly like-for-like. The moka number is changing lower-chamber pressure generated thermally. The espresso number is a machine-controlled pressure applied to water passing through a compacted puck. Pressure generation, measurement location, coffee-bed preparation, and beverage format all differ. Higher pressure is not, by itself, a measure of better coffee.

For the direct foam experiments—and why visible moka bubbles are not automatically espresso crema—see Does a Moka Pot Make Crema?.

Does more heat mean more brewing pressure?

More heat supplies energy faster. In the published experiment, continued heat input became increasingly important late in the cycle as less water remained, contributing to faster pressure and flow changes. Coffee-bed resistance was changing at the same time, so heat did not map to one fixed pressure increase.

That physical relationship is not a reason to force a moka pot to higher pressure. Bialetti instructs users not to use the highest setting on an electric or ceramic hob. It also says to fill only to the lower edge of the safety valve, use coffee ground for moka without pressing it, and keep the valve, funnel, gasket, and filter plate intact. Bialetti Moka Express instructions

What does the safety valve do?

The safety valve provides a relief path if pressure in the lower chamber becomes excessive. It is not the component that normally holds brewing pressure at a target value. In ordinary operation, pressure and flow are governed by heating, the gas and water state, the pot’s geometry, and resistance along the coffee path.

The dedicated moka pot safety-valve guide covers its location, model-specific water reference, permitted external inspection, and service boundary without treating it as a user-adjustable pressure control.

The examined Bialetti manual treats valve venting as a fault condition to investigate and does not state an opening pressure. Different products need not use the same valve specification, so one valve-opening pressure cannot be assumed for all moka pots.

Why do online moka-pressure numbers disagree?

Several different quantities are often shortened to “moka pressure”:

1. Absolute versus gauge pressure. About 2 bar absolute is about 1 bar above atmospheric pressure.
2. A changing trace versus one number. Pressure near the start, during liquid flow, and after gas enters the funnel is not the same.
3. Peak versus regular extraction. A late maximum is not a steady brewing value.
4. Different measurement locations. Lower-tank pressure and pressure drop across the coffee bed answer different questions.
5. Different setups. Pot geometry, water fill and headspace, heat input, coffee dose, grind, and bed permeability can differ.
6. Missing source context. A rounded result can be repeated without its apparatus, pressure reference, or brew phase.

Compare pressure values only when the reference, phase, measurement location, and setup are stated.
